How To Evaluate The Quality And Reliability Of High-Voltage Switchgear

Evaluating the quality and reliability of high-voltage switchgear requires a comprehensive assessment across five dimensions: technical standards, design and manufacturing, testing and verification, environmental adaptability, and long-term operational performance. The following is a systematic evaluation framework based on industry standards and engineering practices to help you accurately identify high-quality equipment.



1. Does it comply with authoritative standards and certifications? Compliance is a fundamental threshold for reliability. The key verification criteria are whether the following standards have been met:

International Standards: IEC 62271 series (e.g., IEC 62271-1 General Standard for High Voltage Switchgear)

National Standards: GB 3906 "3.6kV～40.5kV AC Metal-Enclosed Switchgear"

System Certifications: ISO9001 Quality Management System, ISO14001 Environmental Management System, ISO45001 Occupational Health and Safety Management System



2. Design and Manufacturing Process Quality High-quality equipment is reflected in attention to detail and material selection:

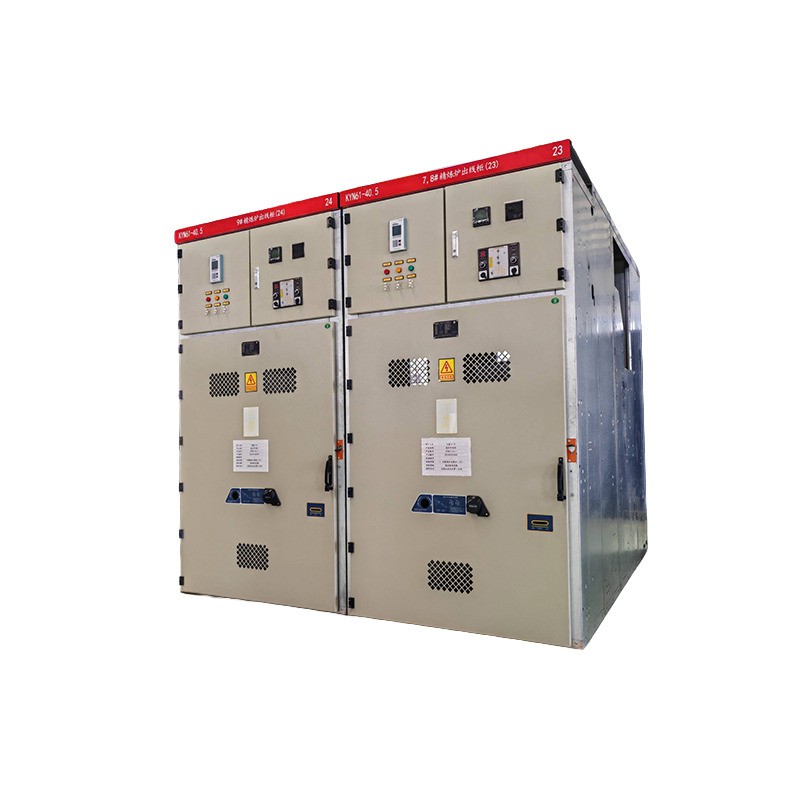

Structural Design: Employing metal-enclosed armored design (e.g., KYN series), each functional compartment (circuit breaker compartment, busbar compartment, etc.) is completely isolated by grounded metal plates, providing strong protection against misoperation.

Key Components:
Circuit Breaker: Preferably a vacuum interrupter with a mechanical life of ≥30,000 cycles;
Insulation Components: High-strength epoxy resin is used, which is resistant to aging and prevents creepage;
Busbar Connection: Copper busbars are silver-plated to reduce contact resistance and temperature rise.

"Five-Proof" Interlocking Functions: Must have safety mechanisms to prevent accidental opening and closing of circuit breakers, closing of grounding switches while energized, and accidental entry into energized compartments^[A1]^.
