How To Choose The Right High-Voltage Switchgear

Selecting high-voltage switchgear requires a comprehensive consideration of space constraints, environmental requirements, power supply reliability, and total lifecycle cost, based on application scenarios, cost, and maintenance difficulty. Below are selection suggestions for different scenarios, providing a clear decision-making path tailored to specific engineering projects.



1. Enterprise Parks and Residential Communities (Ring Main Units)

Application Scenarios: Multi-circuit power supply, ring network structure, prioritizing power supply flexibility and economy.

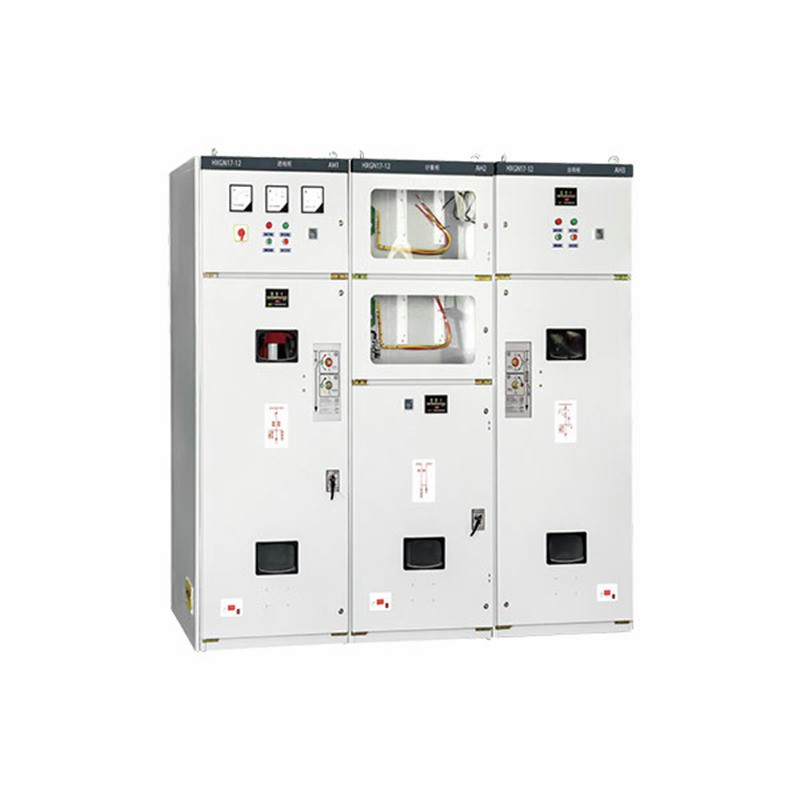

Recommended Type: Ring Main Unit (e.g., HXGN type)

Advantages: Low cost, initial investment is only about 60% of that of a medium-voltage switchgear; Compact size, easy to integrate into prefabricated substations, saving on civil engineering costs; Supports automatic switching between dual power supplies, improving power supply reliability.

Maintenance Difficulty: Moderate, simple structure, few points of failure, but limited expandability.

Applicability Summary: Suitable for cost-sensitive civil projects with low power supply requirements.



2. Industrial and Mining Enterprises, Substations (Medium-voltage Switchgear)

Application Scenarios: Industrial power distribution centers with high loads, frequent operations, and requiring rapid maintenance.

Recommended Type: Medium-voltage switchgear (e.g., KYN28A-12)

Advantages: Handcart-style design; circuit breaker can be withdrawn for uninterrupted maintenance; Mature technology, highly versatile spare parts, and rapid technical service response; Long mechanical life (over 30,000 cycles), maintenance-free characteristics significantly reduce downtime losses.

Cost: Moderate to high, but low long-term maintenance costs.

Maintenance Difficulty: Low, high standardization, and high personnel familiarity.

Summary of Applicability: As the "main force" of the power distribution system, it is irreplaceable in scenarios with high reliability requirements.
